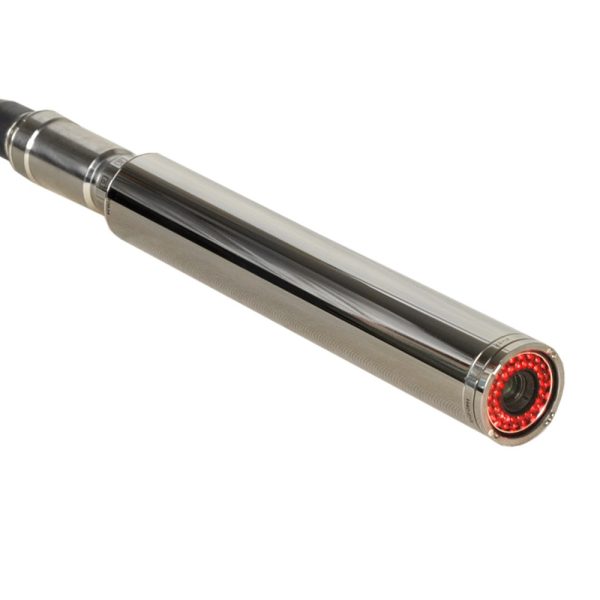

Small diameter of the TV camera D40M allows carrying out visual inspection in confined areas of reactors and pipes. Inspection capabilities of the system are extended by number of optical and lighting heads available to the order.
| Image sensor | Vidicon tube, 2/3″ target CdSe |
| Integral dose | 2×108 Rad |
| Dose rate | 1×106 Rad/h |
| High B&W image quality | 600 TVL |
| Diameter of the camera | 40,5 mm |
| Waterproof | IP68 (50m) |
| Lens and Heads | Rotation Unit | FORS (Foreign Object Removal System) |
|---|---|---|
 |  |  |

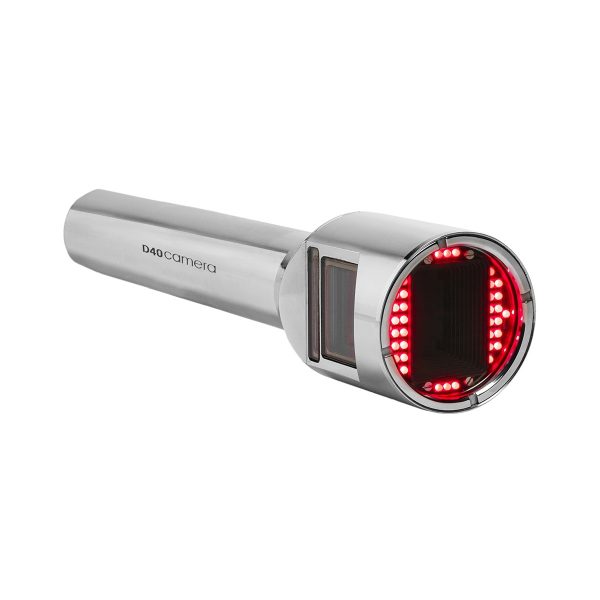

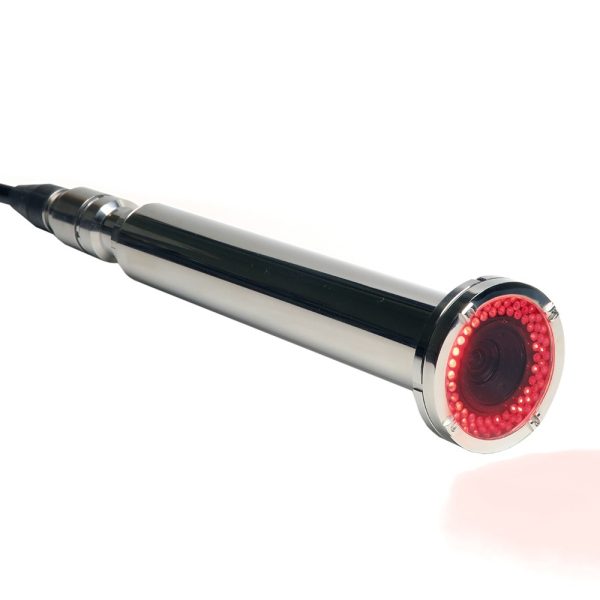

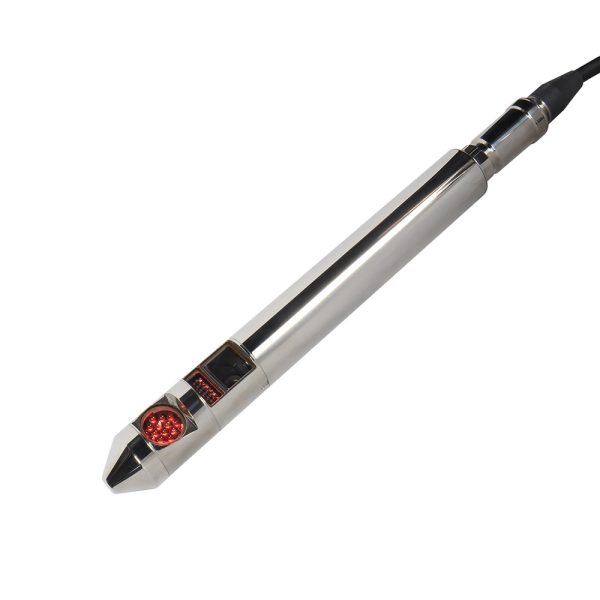

| – Zoom head – Radial (side view) – Frontal (axial view) – Dual-view (you can use one head to view side way and frontal) | Allows to get 360 0 overview (camera rotation is controlled with camera control unit). Dual-view head diameter is 65 mm. Other radial and frontal view heads diameter – is 40 mm. | FORS is an ideal solution for searching and retrieving objects for the needs of nuclear power enterprises. It can detect and extract foreign objects from the bottom of the spent fuel pool, from the reactor facility, the steam generator, reactor cavities and other places with difficult access and high levels of radiation. |
