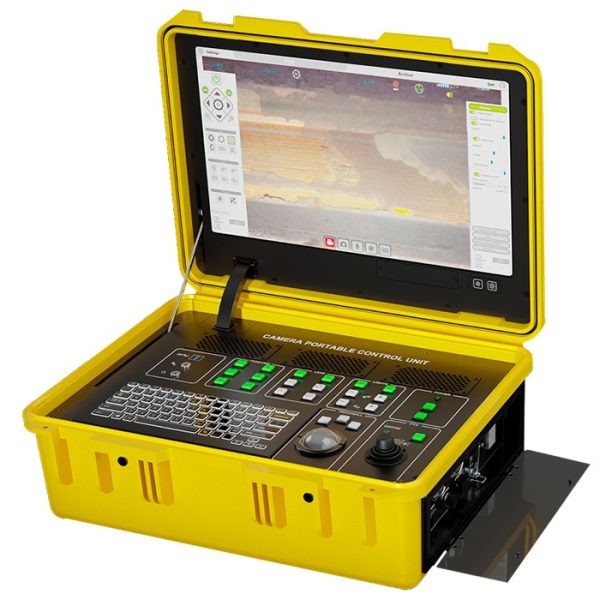

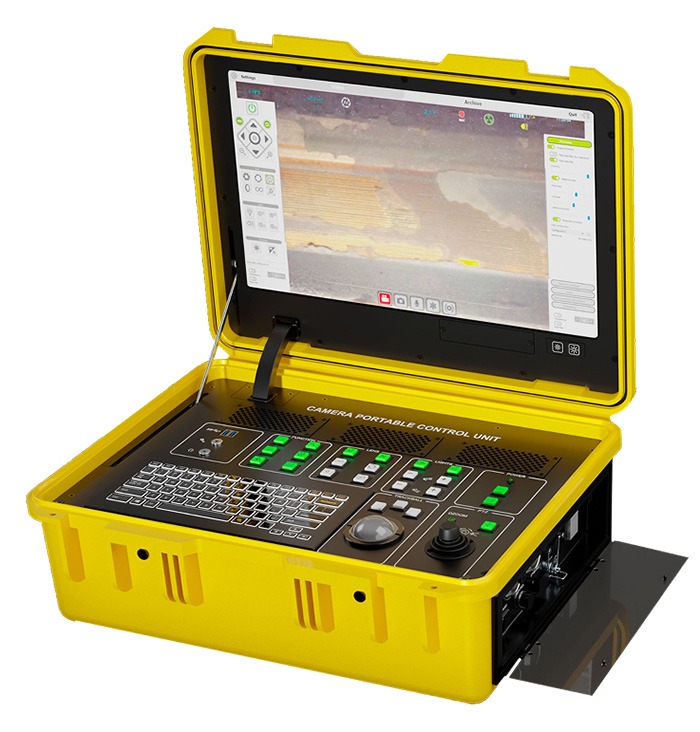

Two-channel Pelican case control unit with built-in monitor, DVR
and computer with software that allows to use its various functions,
including noise and radiation filtration
| Form factor | Portable case |
| Screen diagonal | 18.5″ |
| Screen resolution | Full HD (1920×1080) |
| Frame rate (FPS) | 25/30 |
| Video output | HDMI, LAN |
| USB port | 2 pcs |
| Control interface | RS422/RS485 |
| Control tools | Keyboard, trackball, joystick,touch screen |
| Built-in hard drive | 1 TB (options, up to 4 TB) |
| Dimensions | 540x410x215 mm |
| Weight | 18.5 kg |
1. Size estimation: Proton A camera system allows the Operator to estimate
linear size of the object in two modes:
– Manual (with lasers switched OFF) — basing on given reference dimensions of the object on the same focus distance.
– Auto (with lasers switched ON) — linear size estimation of object, based on laser lines.
2. Noise filtration: Visual Inspection System «PROTON 3» provides possibility to increase image quality using radiation and thermal noise filters.
